To address the demands of urban construction waste users for vehicle comfort, today we will introduce a Changle H5V 430 Maliping floor waste truck. This model features multiple advantages such as high appearance standards, high comfort, abundant power, and leading reliability. What other highlights does it have? Let's take a look together!
Handle the complex working conditions of construction waste with ease
In terms of power configuration, this Changle H5V dump truck is equipped with a Weichai WP12.430E62 12-liter engine, with a maximum horsepower of 430 horsepower and a maximum torque of 2,100 Nm. The abundant power reserve enables users to easily handle various dump truck working conditions. Moreover, the Weichai 12-liter engine also features excellent fuel economy, helping users reduce operating costs.
The transmission is a FAST 12JSDX220TB manual transmission. This transmission is designed with direct gear, with a first gear ratio of 13.15 and a 12-gear ratio of 1. The maximum input torque is 2,200 Newton-meters. The transmission weighs 397 kilograms and has a transmission fluid capacity of 15 liters. This transmission is of stable and reliable quality, mature technology, easy to maintain, and is widely used in heavy truck models.
The rear axle of the actual vehicle adopts a 20-ton wheel reduction axle with a 5.262-speed ratio. It has a high ground clearance from the housing and
the side reduction structure can further reduce speed and increase torque. It is worth mentioning that the actual vehicle is equipped with a axle waterproof bag. Even if it frequently enters and leaves the washing pool, there is no need to worry about water entering the axle, which greatly enhances the vehicle's reliability.

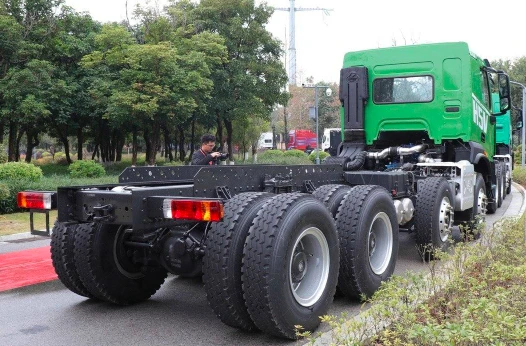

In terms of the chassis, the actual vehicle has a frame specification of 300 (8+4), equipped with a 350-liter aluminum alloy fuel tank, a multi-leaf spring suspension of 11/11/13, and tires of 11.00R20 18PR.
When purchasing a vehicle, truck drivers are most concerned about the vehicle's chassis configuration, especially for dump trucks. Most of them travel in complex environments such as construction sites, so the power must be strong enough and the chassis must be durable enough. Moreover, the working environment is often muddy, dusty and water-rich. The chassis configuration must be comprehensively considered to ensure its reliability and efficiency.
This Changle H5V dump truck also has many highlights. For instance, the wheel end of the front steering axle of the entire vehicle supports the 60,000-kilometer grease change technology, and it is equipped with double saddle bolts and a Mercedes-Benz reinforced drive shaft, etc., which are of great help in enhancing the vehicle's load-bearing capacity and reliability.
The dragon element design is grand and attractive

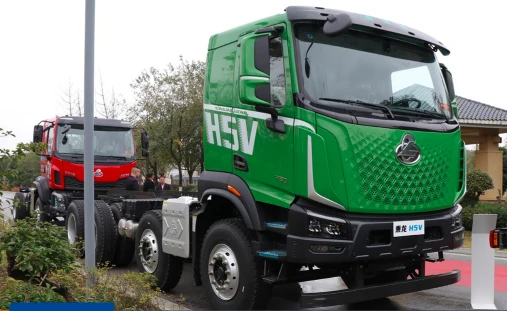

In terms of appearance, this Sinotruk H5V dump truck adopts the Sinotruk H5V cab. The overall shape was designed by an international team of over 200 people led by designers from the United States and India over a period of three years. They used a brand-new design language to create a new platform, perfectly combining the "dragon element" with modern aesthetic automotive design, and the high-end texture is immediately presented.
The rearview mirror of the actual vehicle adopts an integrated design, with the main mirror on top and the secondary mirror at the bottom. Moreover, this rearview mirror is equipped with electric adjustment and electric heating functions. Whether in terms of appearance design or functionality, it can well meet the requirements.
In terms of body dimensions, the actual model captured in this article has a length, width and height of 8755mmX2500mmX3450mm respectively, a wheelbase of 2050+2350+1350mm, a front track of 2020/2020mm, a rear track of 1860/1860mm, an approach Angle of 20 degrees, a departure Angle of 23 degrees, and a total vehicle weight of 12.5 tons.
It is worth mentioning that the cab of this Sinotruk H5V dump truck features integral doors, all-metal bumpers and a keel-type steel structure frame, which can meet the strict EU crash test regulations. While providing the driver with ample interior space, it also ensures safety.
The flat floor cab offers a comfortable ride
Although the transportation distance of urban construction waste trucks is relatively short, drivers still need to stay on the vehicle for a long time, waiting to load and unload goods. Moreover, the transportation conditions are rather harsh, with bumpy roads being the most common. Therefore, the requirements for driving comfort are also very high. Only a sufficiently sealed and comfortable environment can be called a mobile home.
After entering the cab, it can be found that the interior of this Changle H5V dump truck is completely different from the usual black and gray color scheme. The real photo vehicle adopts the latest interior design of the Changle H5V series. The vehicle uses a flat floor design, and the interior space is very spacious, providing sufficient movement space inside the dump truck.
To meet the needs of users who require dust and water resistance, the cab of this Changle H5V dump truck adopts a waterproof and sealed design. Moreover, the layout of the cab fully takes into account ergonomic theories, with scientific and orderly functional zoning Settings. It embodies the design concepts of passenger vehicle-ization, electronicization, and modularization, and can meet the personalized demands of different customers.
In terms of configuration, the entire vehicle is equipped with aviation comfort airbag shock-absorbing seats, a multi-functional steering wheel, cruise control, a multimedia large screen, 360-degree surround view, automatic air conditioning, a water bottle holder, storage compartments, a power take switch, axle-to-wheel differential locks, etc. Moreover, the main functional areas face the driver's side, making daily operation undoubtedly more convenient.
